Configuring Htek UC8XX IP Phones With ConnectViet

Step 1: First you will need to factory reset the phone.

Press Menu → Setting → Advanced Setting (default password: admin) → Factory Reset. Press OK soft key in the warning page.

Step 2: To find your phone’s IP address, simply press the key and select Network on the phone.

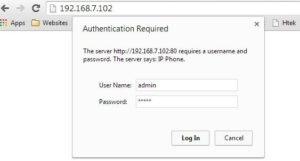

Step 3: Point your browser to the web interface of your H-Tek IP phone, which in this example is http://192.168.7.102

Enter your phone’s login credentials – username and password is admin by default.

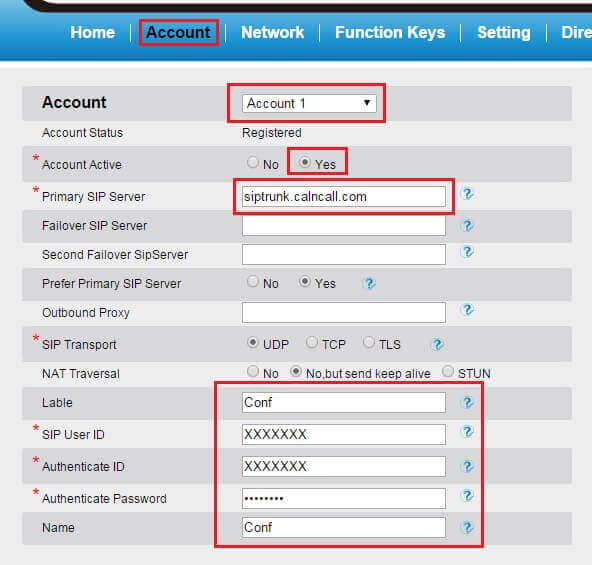

Step 4: Click on the Account tab and enter the following information.

Account: Account1

Account Active: Yes

Label & Name: Enter the name you want to appear on the phone’s display

SIP User ID: < sip username >

Authenticate ID: < sip username >

Authenticate Password: < sip username >

Primary SIP Server: siptrunk.callalcoud.com

Step 5: Once you’ve entered all the details in the accounts page click on Save Set and Restart.

Dial Pattern:

For Singapore 65 + . Ex: 6563401006

For International Prefix: 00 + +

Ex: 008034790665(Japan)
